led_driver.h File Reference

Interfaz del driver de LEDs discretos. More...

#include "chip.h"

Include dependency graph for led_driver.h:

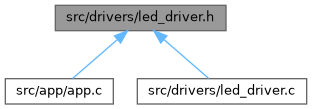

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	LED0R   1
	LED rojo del LED RGB de placa.
#define	LED0G   2
	LED verde del LED RGB de placa.
#define	LED0B   3
	LED azul del LED RGB de placa.
#define	LED1   4
	LED discreto 1.
#define	LED2   5
	LED discreto 2.
#define	LED3   6
	LED discreto 3.

Functions
void	led_init (void)
	Inicializa los pines asociados a los LEDs.
void	led_turn_on (uint8_t led_id)
	Enciende un LED.
void	led_turn_off (uint8_t led_id)
	Apaga un LED.
void	led_toggle (uint8_t led_id)
	Invierte el estado actual de un LED.

Macro Definition Documentation

LED0B

#define LED0B   3

Definition at line 16 of file led_driver.h.

LED0G

#define LED0G   2

Definition at line 14 of file led_driver.h.

LED0R

#define LED0R   1

Definition at line 12 of file led_driver.h.

LED1

#define LED1   4

Definition at line 18 of file led_driver.h.

LED2

#define LED2   5

Definition at line 20 of file led_driver.h.

LED3

#define LED3   6

Definition at line 22 of file led_driver.h.

Function Documentation

led_init()

void led_init

(

void

)

Definition at line 14 of file led_driver.c.

Referenced by app_init().

led_toggle()

void led_toggle

(

uint8_t

led_id

)

Parameters

led_id

Identificador del LED a conmutar.

Definition at line 84 of file led_driver.c.

References LED0B, LED0G, LED0R, LED1, LED2, and LED3.

led_turn_off()

void led_turn_off

(

uint8_t

led_id

)

Parameters

led_id

Identificador del LED a apagar.

Definition at line 58 of file led_driver.c.

References LED0B, LED0G, LED0R, LED1, LED2, and LED3.

Referenced by app_salida_control_escribir().

led_turn_on()

void led_turn_on

(

uint8_t

led_id

)

Parameters

led_id

Identificador del LED a encender.

Definition at line 32 of file led_driver.c.

References LED0B, LED0G, LED0R, LED1, LED2, and LED3.

Referenced by app_salida_control_escribir().
