Interfaz del driver para bus 1-Wire por bit-banging. More...

#include <chip.h>
#include <stdbool.h>
#include <stdint.h>

Include dependency graph for onewire_driver.h:

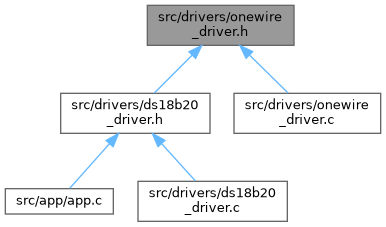

This graph shows which files directly or indirectly include this file:

Data Structures
struct	onewire_pin_config_t
	Configuracion fisica del pin usado por el bus 1-Wire. More...

struct	onewire_driver_t
	Estado del driver 1-Wire para un bus individual. More...

Macros
#define	ONEWIRE_ROM_CODE_SIZE 8U
	Tamano del codigo ROM de un dispositivo 1-Wire.

Functions
bool	onewire_init (onewire_driver_t driver, const onewire_pin_config_t pin_config)
	Inicializa un bus 1-Wire sobre el pin indicado.

bool	onewire_reset (const onewire_driver_t *driver)
	Emite un reset 1-Wire y detecta presencia de dispositivos.

void	onewire_write_bit (const onewire_driver_t *driver, bool bit_value)
	Escribe un bit en el bus 1-Wire.

bool	onewire_read_bit (const onewire_driver_t *driver)
	Lee un bit desde el bus 1-Wire.

void	onewire_write_byte (const onewire_driver_t *driver, uint8_t value)
	Escribe un byte en el bus 1-Wire.

uint8_t	onewire_read_byte (const onewire_driver_t *driver)
	Lee un byte desde el bus 1-Wire.

void	onewire_skip_rom (const onewire_driver_t *driver)
	Emite el comando Skip ROM sobre el bus.

void	onewire_match_rom (const onewire_driver_t *driver, const uint8_t rom_code[ONEWIRE_ROM_CODE_SIZE])
	Selecciona un dispositivo concreto por su codigo ROM.

uint8_t	onewire_search_roms (const onewire_driver_t *driver, uint8_t rom_codes[][ONEWIRE_ROM_CODE_SIZE], uint8_t max_devices)
	Busca dispositivos presentes en el bus mediante el comando Search ROM.

Macro Definition Documentation

◆ ONEWIRE_ROM_CODE_SIZE

#define ONEWIRE_ROM_CODE_SIZE 8U

Definition at line 14 of file onewire_driver.h.

Function Documentation

◆ onewire_init()

bool onewire_init	(	onewire_driver_t *	driver,
		const onewire_pin_config_t *	pin_config
	)

Parameters

driver	Instancia del driver a inicializar.
pin_config	Configuracion fisica del pin del bus.

Return values

true	Si la inicializacion fue correcta.
false	Si algun puntero es invalido.

Definition at line 30 of file onewire_driver.c.

References driver_delay_init(), onewire_driver_t::initialized, onewire_release_line(), onewire_driver_t::pin, onewire_pin_config_t::scu_func, onewire_pin_config_t::scu_mode, onewire_pin_config_t::scu_pin, and onewire_pin_config_t::scu_port.

Referenced by ds18b20_bus_init(), ds18b20_discover(), ds18b20_init(), and ds18b20_init_with_rom().

◆ onewire_match_rom()

void onewire_match_rom	(	const onewire_driver_t *	driver,
		const uint8_t	rom_code[ONEWIRE_ROM_CODE_SIZE]
	)

Parameters

driver	Instancia del driver.
rom_code	Codigo ROM de 64 bits del dispositivo a seleccionar.

Definition at line 149 of file onewire_driver.c.

References onewire_driver_t::initialized, ONEWIRE_CMD_MATCH_ROM, ONEWIRE_ROM_CODE_SIZE, and onewire_write_byte().

Referenced by ds18b20_begin_command(), and ds18b20_bus_begin_command().

◆ onewire_read_bit()

bool onewire_read_bit ( const onewire_driver_t * driver )

Parameters

driver Instancia del driver.

Return values

true	Si el bit leido fue '1'.
false	Si el bit leido fue '0' o el driver no esta inicializado.

Definition at line 89 of file onewire_driver.c.

References driver_delay_us(), onewire_driver_t::initialized, onewire_drive_low(), onewire_read_line(), and onewire_release_line().

Referenced by onewire_read_byte(), and onewire_search_roms().

◆ onewire_read_byte()

uint8_t onewire_read_byte ( const onewire_driver_t * driver )

Parameters

driver Instancia del driver.

Returns: Byte leido, comenzando por el bit menos significativo.

Definition at line 122 of file onewire_driver.c.

References onewire_driver_t::initialized, and onewire_read_bit().

Referenced by ds18b20_bus_read_raw(), and ds18b20_read_scratchpad().

◆ onewire_reset()

bool onewire_reset ( const onewire_driver_t * driver )

Parameters

driver Instancia del driver.

Return values

true	Si algun dispositivo respondio con pulso de presencia.
false	Si no hubo presencia o el driver no esta inicializado.

Definition at line 50 of file onewire_driver.c.

References driver_delay_us(), onewire_driver_t::initialized, onewire_drive_low(), onewire_read_line(), and onewire_release_line().

Referenced by ds18b20_begin_command(), ds18b20_bus_begin_command(), ds18b20_is_present(), and onewire_search_roms().

◆ onewire_search_roms()

uint8_t onewire_search_roms	(	const onewire_driver_t *	driver,
		uint8_t	rom_codes[][ONEWIRE_ROM_CODE_SIZE],
		uint8_t	max_devices
	)

Parameters

driver	Instancia del driver del bus.
rom_codes	Tabla de salida con los ROM encontrados.
max_devices	Cantidad maxima de dispositivos a almacenar.

Returns: Cantidad de dispositivos encontrados y almacenados.

Definition at line 164 of file onewire_driver.c.

References onewire_driver_t::initialized, ONEWIRE_CMD_SEARCH_ROM, onewire_read_bit(), onewire_reset(), ONEWIRE_ROM_CODE_SIZE, onewire_write_bit(), and onewire_write_byte().

Referenced by ds18b20_bus_discover(), and ds18b20_discover().

◆ onewire_skip_rom()

void onewire_skip_rom ( const onewire_driver_t * driver )

Debe usarse cuando hay un unico dispositivo en el bus, o cuando se desea enviar un comando global a todos los dispositivos.

Parameters

driver Instancia del driver.

Definition at line 140 of file onewire_driver.c.

References onewire_driver_t::initialized, ONEWIRE_CMD_SKIP_ROM, and onewire_write_byte().

Referenced by ds18b20_begin_command(), and ds18b20_bus_begin_command().

◆ onewire_write_bit()

void onewire_write_bit	(	const onewire_driver_t *	driver,
		bool	bit_value
	)

Parameters

driver	Instancia del driver.
bit_value	Valor del bit a transmitir.

Definition at line 70 of file onewire_driver.c.

References driver_delay_us(), onewire_driver_t::initialized, onewire_drive_low(), and onewire_release_line().

Referenced by onewire_search_roms(), and onewire_write_byte().

◆ onewire_write_byte()

void onewire_write_byte	(	const onewire_driver_t *	driver,
		uint8_t	value
	)

Parameters

driver	Instancia del driver.
value	Byte a transmitir, comenzando por el bit menos significativo.

Definition at line 108 of file onewire_driver.c.

References onewire_driver_t::initialized, and onewire_write_bit().

Referenced by ds18b20_begin_command(), ds18b20_bus_begin_command(), onewire_match_rom(), onewire_search_roms(), and onewire_skip_rom().
