Implementacion del driver para sensor de temperatura DS18B20. More...

#include "ds18b20_driver.h"
#include "delay_driver.h"
#include <string.h>

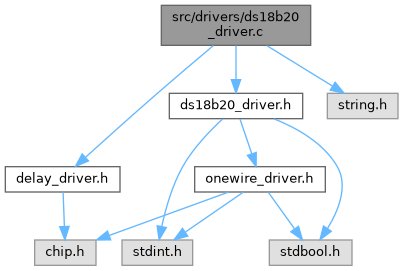

Include dependency graph for ds18b20_driver.c:

Macros
#define	DS18B20_CMD_CONVERT_T 0x44U

#define	DS18B20_CMD_READ_SCRATCHPAD 0xBEU

Functions
static uint8_t	ds18b20_crc8 (const uint8_t *data, uint8_t length)

static bool	ds18b20_crc8_is_valid (const uint8_t *data, uint8_t length)

static void	ds18b20_reset_state (ds18b20_driver_t *driver)

static bool	ds18b20_begin_command (ds18b20_driver_t *driver, uint8_t command)

static bool	ds18b20_bus_begin_command (const onewire_driver_t *bus, const uint8_t rom_code[ONEWIRE_ROM_CODE_SIZE], uint8_t command)

static bool	ds18b20_finish_conversion (ds18b20_driver_t *driver)

static bool	ds18b20_bus_read_raw (const onewire_driver_t bus, const uint8_t rom_code[ONEWIRE_ROM_CODE_SIZE], int16_t raw_temperature)

bool	ds18b20_init (ds18b20_driver_t driver, const onewire_pin_config_t pin_config)
	Inicializa el driver DS18B20 sobre el pin indicado.

bool	ds18b20_init_with_rom (ds18b20_driver_t driver, const onewire_pin_config_t pin_config, const uint8_t rom_code[ONEWIRE_ROM_CODE_SIZE])
	Inicializa un sensor DS18B20 concreto identificado por su ROM.

uint8_t	ds18b20_discover (const onewire_pin_config_t *pin_config, uint8_t rom_codes[][ONEWIRE_ROM_CODE_SIZE], uint8_t max_devices)
	Busca sensores DS18B20 presentes en el bus indicado.

bool	ds18b20_is_present (ds18b20_driver_t *driver)
	Verifica si hay un dispositivo presente en el bus del sensor.

bool	ds18b20_start_conversion (ds18b20_driver_t *driver)
	Inicia una conversion de temperatura.

void	ds18b20_process (ds18b20_driver_t *driver, uint16_t elapsed_ms)
	Avanza la maquina de estados no bloqueante del sensor.

bool	ds18b20_is_busy (const ds18b20_driver_t *driver)
	Indica si hay una conversion en curso.

bool	ds18b20_has_valid_sample (const ds18b20_driver_t *driver)
	Indica si el driver dispone de una ultima muestra valida.

bool	ds18b20_get_latest_raw (const ds18b20_driver_t driver, int16_t raw_temperature)
	Obtiene la ultima temperatura cruda ya convertida.

bool	ds18b20_get_latest_temperature_celsius (const ds18b20_driver_t driver, float temperature_celsius)
	Obtiene la ultima temperatura valida en grados Celsius.

bool	ds18b20_read_scratchpad (ds18b20_driver_t *driver, uint8_t scratchpad[DS18B20_SCRATCHPAD_SIZE])
	Lee el scratchpad completo del sensor.

bool	ds18b20_read_raw (ds18b20_driver_t driver, int16_t raw_temperature)
	Lee la temperatura cruda del sensor en forma bloqueante.

bool	ds18b20_read_temperature_celsius (ds18b20_driver_t driver, float temperature_celsius)
	Lee la temperatura del sensor en grados Celsius en forma bloqueante.

bool	ds18b20_bus_init (ds18b20_bus_driver_t driver, const onewire_pin_config_t pin_config)
	Inicializa un bus compartido para varios sensores DS18B20.

uint8_t	ds18b20_bus_discover (ds18b20_bus_driver_t *driver)
	Descubre sensores DS18B20 y actualiza la tabla interna del bus.

bool	ds18b20_bus_start_conversion (ds18b20_bus_driver_t *driver)
	Inicia una conversion global para todos los sensores del bus.

void	ds18b20_bus_process (ds18b20_bus_driver_t *driver, uint16_t elapsed_ms)
	Avanza la maquina de estados multi-sensor del bus.

bool	ds18b20_bus_is_busy (const ds18b20_bus_driver_t *driver)
	Indica si el bus esta ocupado convirtiendo o leyendo sensores.

uint8_t	ds18b20_bus_get_device_count (const ds18b20_bus_driver_t *driver)
	Devuelve la cantidad de sensores actualmente descubiertos.

bool	ds18b20_bus_has_valid_sample (const ds18b20_bus_driver_t *driver, uint8_t index)
	Indica si un sensor del bus tiene una muestra valida disponible.

bool	ds18b20_bus_get_latest_raw (const ds18b20_bus_driver_t driver, uint8_t index, int16_t raw_temperature)
	Obtiene la ultima temperatura cruda cacheada de un sensor del bus.

bool	ds18b20_bus_get_latest_temperature_celsius (const ds18b20_bus_driver_t driver, uint8_t index, float temperature_celsius)
	Obtiene la ultima temperatura cacheada de un sensor del bus en Celsius.

bool	ds18b20_bus_get_rom_code (const ds18b20_bus_driver_t *driver, uint8_t index, uint8_t rom_code[ONEWIRE_ROM_CODE_SIZE])
	Copia el codigo ROM de un sensor descubierto en el bus.

Macro Definition Documentation

◆ DS18B20_CMD_CONVERT_T

#define DS18B20_CMD_CONVERT_T 0x44U

Definition at line 12 of file ds18b20_driver.c.

◆ DS18B20_CMD_READ_SCRATCHPAD

#define DS18B20_CMD_READ_SCRATCHPAD 0xBEU

Definition at line 13 of file ds18b20_driver.c.

Function Documentation

◆ ds18b20_begin_command()

static bool ds18b20_begin_command	(	ds18b20_driver_t *	driver,
		uint8_t	command
	)

static

Definition at line 48 of file ds18b20_driver.c.

References ds18b20_driver_t::bus, ds18b20_driver_t::initialized, onewire_match_rom(), onewire_reset(), onewire_skip_rom(), onewire_write_byte(), ds18b20_driver_t::rom_code, and ds18b20_driver_t::use_match_rom.

Referenced by ds18b20_read_scratchpad(), and ds18b20_start_conversion().

◆ ds18b20_bus_begin_command()

static bool ds18b20_bus_begin_command	(	const onewire_driver_t *	bus,
		const uint8_t	rom_code[ONEWIRE_ROM_CODE_SIZE],
		uint8_t	command
	)

static

Definition at line 67 of file ds18b20_driver.c.

References onewire_driver_t::initialized, onewire_match_rom(), onewire_reset(), onewire_skip_rom(), and onewire_write_byte().

Referenced by ds18b20_bus_read_raw(), and ds18b20_bus_start_conversion().

◆ ds18b20_bus_discover()

uint8_t ds18b20_bus_discover ( ds18b20_bus_driver_t * driver )

Esta variante no se usa en el firmware actual.

Definition at line 359 of file ds18b20_driver.c.

References ds18b20_bus_driver_t::bus, ds18b20_bus_driver_t::conversion_elapsed_ms, ds18b20_bus_driver_t::current_index, ds18b20_bus_driver_t::device_count, ds18b20_bus_driver_t::devices, DS18B20_BUS_STATE_IDLE, ds18b20_crc8_is_valid(), DS18B20_FAMILY_CODE, DS18B20_MAX_DEVICES, ds18b20_bus_driver_t::initialized, ds18b20_device_t::last_raw_temperature, ONEWIRE_ROM_CODE_SIZE, onewire_search_roms(), ds18b20_device_t::rom_code, ds18b20_device_t::sample_valid, and ds18b20_bus_driver_t::state.

◆ ds18b20_bus_get_device_count()

uint8_t ds18b20_bus_get_device_count ( const ds18b20_bus_driver_t * driver )

Esta variante no se usa en el firmware actual.

Definition at line 467 of file ds18b20_driver.c.

References ds18b20_bus_driver_t::device_count, and ds18b20_bus_driver_t::initialized.

◆ ds18b20_bus_get_latest_raw()

bool ds18b20_bus_get_latest_raw	(	const ds18b20_bus_driver_t *	driver,
		uint8_t	index,
		int16_t *	raw_temperature
	)

Esta variante no se usa en el firmware actual.

Definition at line 485 of file ds18b20_driver.c.

References ds18b20_bus_driver_t::device_count, ds18b20_bus_driver_t::devices, ds18b20_bus_driver_t::initialized, ds18b20_device_t::last_raw_temperature, and ds18b20_device_t::sample_valid.

◆ ds18b20_bus_get_latest_temperature_celsius()

bool ds18b20_bus_get_latest_temperature_celsius	(	const ds18b20_bus_driver_t *	driver,
		uint8_t	index,
		float *	temperature_celsius
	)

Esta variante no se usa en el firmware actual.

Definition at line 498 of file ds18b20_driver.c.

References ds18b20_bus_driver_t::devices, ds18b20_bus_has_valid_sample(), and ds18b20_device_t::last_raw_temperature.

◆ ds18b20_bus_get_rom_code()

bool ds18b20_bus_get_rom_code	(	const ds18b20_bus_driver_t *	driver,
		uint8_t	index,
		uint8_t	rom_code[ONEWIRE_ROM_CODE_SIZE]
	)

Esta variante no se usa en el firmware actual.

Definition at line 510 of file ds18b20_driver.c.

References ds18b20_bus_driver_t::device_count, ds18b20_bus_driver_t::devices, ds18b20_bus_driver_t::initialized, ONEWIRE_ROM_CODE_SIZE, and ds18b20_device_t::rom_code.

◆ ds18b20_bus_has_valid_sample()

bool ds18b20_bus_has_valid_sample	(	const ds18b20_bus_driver_t *	driver,
		uint8_t	index
	)

Esta variante no se usa en el firmware actual.

Definition at line 476 of file ds18b20_driver.c.

References ds18b20_bus_driver_t::device_count, ds18b20_bus_driver_t::devices, ds18b20_bus_driver_t::initialized, and ds18b20_device_t::sample_valid.

Referenced by ds18b20_bus_get_latest_temperature_celsius().

◆ ds18b20_bus_init()

bool ds18b20_bus_init	(	ds18b20_bus_driver_t *	driver,
		const onewire_pin_config_t *	pin_config
	)

Esta variante no se usa en el firmware actual.

Definition at line 340 of file ds18b20_driver.c.

References ds18b20_bus_driver_t::bus, ds18b20_bus_driver_t::conversion_elapsed_ms, ds18b20_bus_driver_t::current_index, ds18b20_bus_driver_t::device_count, ds18b20_bus_driver_t::devices, DS18B20_BUS_STATE_IDLE, ds18b20_bus_driver_t::initialized, onewire_init(), and ds18b20_bus_driver_t::state.

◆ ds18b20_bus_is_busy()

bool ds18b20_bus_is_busy ( const ds18b20_bus_driver_t * driver )

Esta variante no se usa en el firmware actual.

Definition at line 457 of file ds18b20_driver.c.

References DS18B20_BUS_STATE_CONVERTING, DS18B20_BUS_STATE_READING, ds18b20_bus_driver_t::initialized, and ds18b20_bus_driver_t::state.

◆ ds18b20_bus_process()

void ds18b20_bus_process	(	ds18b20_bus_driver_t *	driver,
		uint16_t	elapsed_ms
	)

Esta variante no se usa en el firmware actual.

Definition at line 409 of file ds18b20_driver.c.

References ds18b20_bus_driver_t::bus, ds18b20_bus_driver_t::conversion_elapsed_ms, ds18b20_bus_driver_t::current_index, ds18b20_bus_driver_t::device_count, ds18b20_bus_driver_t::devices, ds18b20_bus_read_raw(), DS18B20_BUS_STATE_CONVERTING, DS18B20_BUS_STATE_ERROR, DS18B20_BUS_STATE_IDLE, DS18B20_BUS_STATE_READING, DS18B20_CONVERSION_TIME_MS, ds18b20_bus_driver_t::initialized, ds18b20_device_t::last_raw_temperature, ds18b20_device_t::rom_code, ds18b20_device_t::sample_valid, and ds18b20_bus_driver_t::state.

◆ ds18b20_bus_read_raw()

static bool ds18b20_bus_read_raw	(	const onewire_driver_t *	bus,
		const uint8_t	rom_code[ONEWIRE_ROM_CODE_SIZE],
		int16_t *	raw_temperature
	)

static

Definition at line 105 of file ds18b20_driver.c.

References ds18b20_bus_begin_command(), DS18B20_CMD_READ_SCRATCHPAD, ds18b20_crc8_is_valid(), DS18B20_SCRATCHPAD_SIZE, onewire_driver_t::initialized, and onewire_read_byte().

Referenced by ds18b20_bus_process().

◆ ds18b20_bus_start_conversion()

bool ds18b20_bus_start_conversion ( ds18b20_bus_driver_t * driver )

Esta variante no se usa en el firmware actual.

Definition at line 392 of file ds18b20_driver.c.

References ds18b20_bus_driver_t::bus, ds18b20_bus_driver_t::conversion_elapsed_ms, ds18b20_bus_driver_t::current_index, ds18b20_bus_driver_t::device_count, ds18b20_bus_begin_command(), DS18B20_BUS_STATE_CONVERTING, DS18B20_BUS_STATE_ERROR, DS18B20_CMD_CONVERT_T, ds18b20_bus_driver_t::initialized, and ds18b20_bus_driver_t::state.

◆ ds18b20_crc8()

static uint8_t ds18b20_crc8	(	const uint8_t *	data,
		uint8_t	length
	)

static

Definition at line 15 of file ds18b20_driver.c.

Referenced by ds18b20_crc8_is_valid().

◆ ds18b20_crc8_is_valid()

static bool ds18b20_crc8_is_valid	(	const uint8_t *	data,
		uint8_t	length
	)

static

Definition at line 35 of file ds18b20_driver.c.

References ds18b20_crc8().

Referenced by ds18b20_bus_discover(), ds18b20_bus_read_raw(), ds18b20_discover(), ds18b20_init_with_rom(), and ds18b20_read_scratchpad().

◆ ds18b20_discover()

uint8_t ds18b20_discover	(	const onewire_pin_config_t *	pin_config,
		uint8_t	rom_codes[][ONEWIRE_ROM_CODE_SIZE],
		uint8_t	max_devices
	)

Esta variante no se usa en el firmware actual, pero se conserva como parte de la API del driver.

Definition at line 173 of file ds18b20_driver.c.

References ds18b20_crc8_is_valid(), DS18B20_FAMILY_CODE, onewire_init(), ONEWIRE_ROM_CODE_SIZE, and onewire_search_roms().

◆ ds18b20_finish_conversion()

static bool ds18b20_finish_conversion ( ds18b20_driver_t * driver )

static

Definition at line 89 of file ds18b20_driver.c.

References ds18b20_read_scratchpad(), DS18B20_SCRATCHPAD_SIZE, DS18B20_STATE_DATA_READY, DS18B20_STATE_ERROR, ds18b20_driver_t::last_raw_temperature, ds18b20_driver_t::sample_valid, and ds18b20_driver_t::state.

Referenced by ds18b20_process(), and ds18b20_read_raw().

◆ ds18b20_get_latest_raw()

bool ds18b20_get_latest_raw	(	const ds18b20_driver_t *	driver,
		int16_t *	raw_temperature
	)

Definition at line 265 of file ds18b20_driver.c.

References ds18b20_driver_t::initialized, ds18b20_driver_t::last_raw_temperature, and ds18b20_driver_t::sample_valid.

Referenced by app_step_20ms(), and ds18b20_read_raw().

◆ ds18b20_get_latest_temperature_celsius()

bool ds18b20_get_latest_temperature_celsius	(	const ds18b20_driver_t *	driver,
		float *	temperature_celsius
	)

Esta variante no se usa en el firmware actual.

Definition at line 275 of file ds18b20_driver.c.

References ds18b20_has_valid_sample(), and ds18b20_driver_t::last_raw_temperature.

◆ ds18b20_has_valid_sample()

bool ds18b20_has_valid_sample ( const ds18b20_driver_t * driver )

Definition at line 256 of file ds18b20_driver.c.

References ds18b20_driver_t::initialized, and ds18b20_driver_t::sample_valid.

Referenced by ds18b20_get_latest_temperature_celsius().

◆ ds18b20_init()

bool ds18b20_init	(	ds18b20_driver_t *	driver,
		const onewire_pin_config_t *	pin_config
	)

Parameters

driver	Instancia del driver a inicializar.
pin_config	Configuracion fisica del pin del bus 1-Wire.

Return values

true	Si la inicializacion fue correcta y el sensor respondio.
false	Si hubo un error de parametros o no se detecto presencia.

Definition at line 132 of file ds18b20_driver.c.

References ds18b20_driver_t::bus, ds18b20_is_present(), ds18b20_reset_state(), ds18b20_driver_t::initialized, onewire_init(), ds18b20_driver_t::rom_code, and ds18b20_driver_t::use_match_rom.

Referenced by app_init(), and app_step_20ms().

◆ ds18b20_init_with_rom()

bool ds18b20_init_with_rom	(	ds18b20_driver_t *	driver,
		const onewire_pin_config_t *	pin_config,
		const uint8_t	rom_code[ONEWIRE_ROM_CODE_SIZE]
	)

Esta variante no se usa en el firmware actual, pero se conserva como parte de la API del driver.

Definition at line 149 of file ds18b20_driver.c.

References ds18b20_driver_t::bus, ds18b20_crc8_is_valid(), DS18B20_FAMILY_CODE, ds18b20_is_present(), ds18b20_reset_state(), ds18b20_driver_t::initialized, onewire_init(), ONEWIRE_ROM_CODE_SIZE, ds18b20_driver_t::rom_code, and ds18b20_driver_t::use_match_rom.

◆ ds18b20_is_busy()

bool ds18b20_is_busy ( const ds18b20_driver_t * driver )

Parameters

driver Instancia del driver.

Return values

true	Si el sensor esta convirtiendo temperatura.
false	Si no hay conversion pendiente o el driver es invalido.

Definition at line 247 of file ds18b20_driver.c.

References DS18B20_STATE_CONVERTING, ds18b20_driver_t::initialized, and ds18b20_driver_t::state.

Referenced by app_step_20ms().

◆ ds18b20_is_present()

bool ds18b20_is_present ( ds18b20_driver_t * driver )

Definition at line 208 of file ds18b20_driver.c.

References ds18b20_driver_t::bus, onewire_driver_t::initialized, and onewire_reset().

Referenced by ds18b20_init(), and ds18b20_init_with_rom().

◆ ds18b20_process()

void ds18b20_process	(	ds18b20_driver_t *	driver,
		uint16_t	elapsed_ms
	)

Debe llamarse periodicamente desde el lazo principal o desde una tarea cooperativa. Cuando la conversion termina, el driver lee el scratchpad y actualiza la ultima muestra valida disponible.

Parameters
